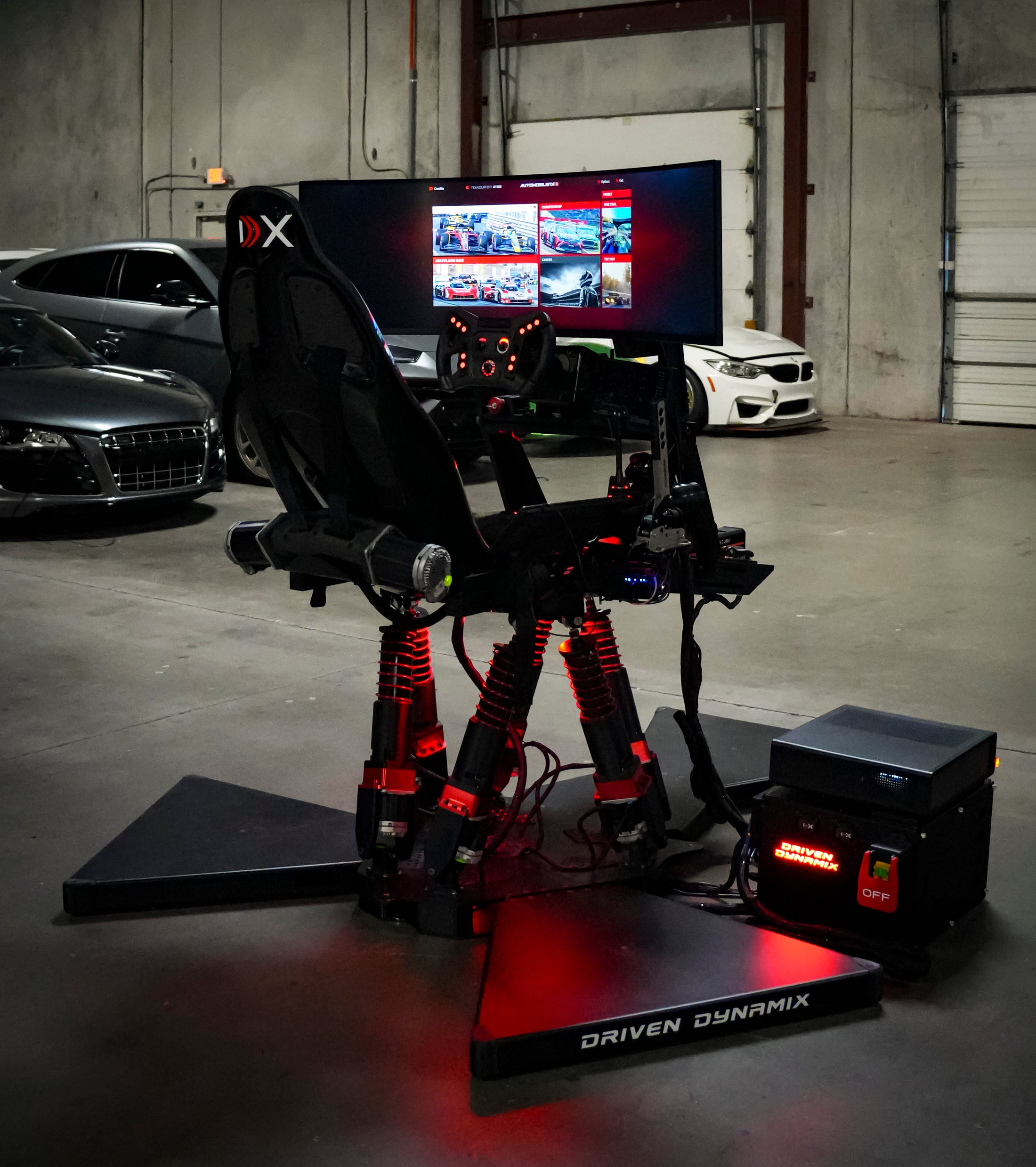

DDX Precision
Prime fidelity. Smaller footprint. Half the price.
For those who understand what DDX Prime makes possible and require a more practical format, the DDX Precision delivers the same engineering philosophy in a more compact architecture.
Designed from the Prime platform, the DDX Precision preserves the essential components that define its halo-grade fidelity. Core motion architecture. Control systems. Ultra-low latency and performance. The sensations that matter, retained and refined within a streamlined motion envelope and reduced physical footprint.
The result is a system engineered with intent. Focused motion range. Intelligent packaging. Reduced spatial demand. Approximately half the price of Prime, without departing from the standards that define it.
DDX Precision extends the reach of true motion fidelity. Compact in form. Exacting in execution.
Powered By DDX PreActiv
Ultra-low latency. Total control at the limit.
DDX PreActiv is our predictive motion technology that anticipates vehicle behavior before it happens, eliminating the delay between driver input and simulator response. The result is motion that stays perfectly in sync through slides, grip changes, and edge-of-control driving.
Where traditional simulators feel delayed and unpredictable, PreActiv makes the car feel stable, connected, and real.
Engineered for Real Spaces
DDX Precision was designed to bring reference-grade motion into environments where space, acoustics, and practicality matter.
Its platform occupies approximately 75% of the floor footprint of Prime, with a more compact architecture that integrates seamlessly into high-end home setups or professional environments.
Acoustic engineering further refines the experience. The motion system operates significantly quieter than Prime, making it suitable for residential environments without compromising responsiveness or precision.
Despite its smaller scale, the system maintains the ultra-responsive character that defines the DDX platform:
-
4 millisecond telemetry-to-motion latency
-
1000 Hz control frequency, 250 Hz haptic bandwidth, 125 Hz motion bandwidth
-
4 Gs of simulated force
-
Class-leading motion envelope
The result is motion that remains immediate, controlled, and deeply convincing.
Technology from the World’s Most Advanced Simulators
The technologies behind DDX Precision originate from the same engineering principles used in multi-million-dollar Formula 1 and factory driving simulators.
What was once confined to elite motorsport programs has now been distilled into a platform accessible to enthusiasts and professional drivers alike.
Every component is developed as part of a vertically integrated system, designed to function together with absolute coherence:
-
Proprietary hardware architecture
-
Custom electronics and firmware
-
Real-time motion control software
-

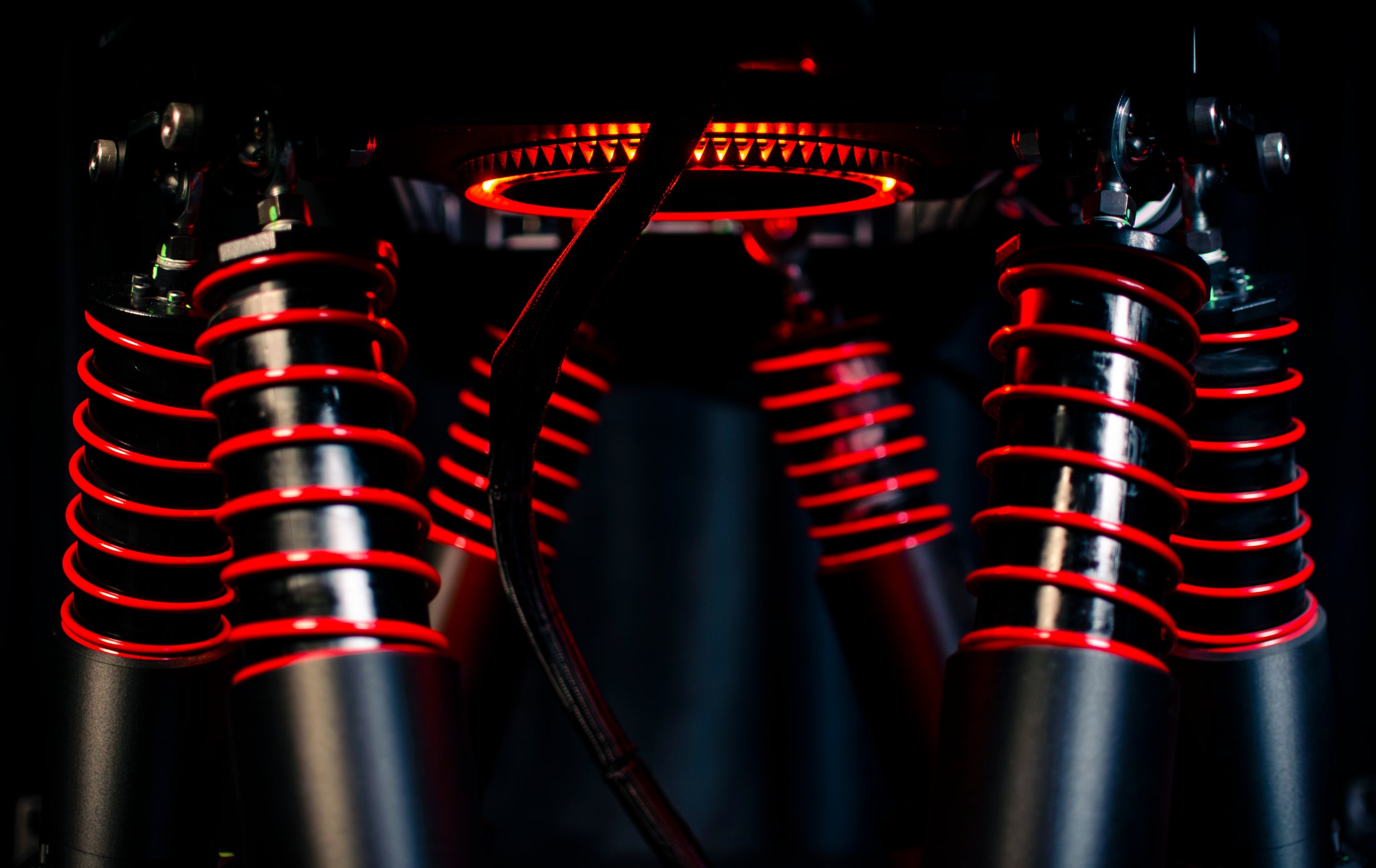

In-house actuator development
-
Advanced structural materials including CNC-machined aluminum and metal additive manufacturing
By designing the entire stack, from software to motion platform, DDX eliminates the compromises common in modular systems. Every subsystem speaks the same language. Every movement is intentional.
What's Included
| Base |
Base + Rally Package
|
|
| Gaming PC | ✓ | ✓ |
| Simucube 3 Pro Wheelbase | ✓ | ✓ |
| VPG Mustang GT3 Wheel | ✓ | ✓ |
| Simucube Tahko Round Rally Wheel | ✓ | |
| Simucube Active Pedal (brake) | ✓ | ✓ |
| Simucube Co-Pedal (accelerator) | ✓ | ✓ |
| Simucube Co-Pedal (clutch) | ✓ | |
| BDH H2SQ Shifter | ✓ | |
| Heusinkveld Handbrake | ✓ | |
| Shifter Bracket & Hardware | ✓ | |
| Gaming Headset | ✓ | ✓ |
| Super Ultrawide Monitor | ✓ | ✓ |
| iRacing | ✓ | ✓ |
| Rally Software (WRC or Assetto Corsa Rally) | ✓ | |
| DDX Belt Tensioner | ✓ | ✓ |
| DDX AeroSurge | ✓ | ✓ |
Precision vs Prime Specs
|
DDX Precision |
DDX Prime |
|
|
Telemetry-to-Motion Latency |
4ms |
3ms |
|
DDX PreActiv |
Included |
Included |
|
Control Frequency |
1000Hz |
1000Hz |
|
Haptic Bandwidth |
250Hz |
500Hz |
|
Motion Bandwidth |
125Hz |
200Hz |
|
Max Travel (e.g. 200 mm = +/- 100 mm) |
750 mm surge 700 mm sway 230 mm heave 58 deg yaw 57 deg pitch 57 deg roll |
750 mm surge 700 mm sway 230 mm heave 58 deg yaw 60 deg pitch 59 deg roll |
|
Single-DoF Travel (e.g. 200 mm = +/- 100 mm) |
500 mm surge 480 mm sway 190 mm heave 58 deg yaw 50 deg pitch 50 deg roll |
500 mm surge 480 mm sway 190 mm heave 58 deg yaw 52 deg pitch 50 deg roll |
|
1:1 Orientation Zone (pitch and roll) |
+/- 11 deg |
+/- 16 deg |
|
Max Velocity |
500 mm/s surge 440 mm/s sway 120 mm/s heave 110 deg/s yaw 30 deg/s pitch 30 deg/s roll |
610 mm/s surge 560 mm/s sway 145 mm/s heave 155 deg/s yaw 40 deg/s pitch 40 deg/s roll |
|
Max Acceleration (assuming 100kg rider payload) * = safety limited |
4.3 G (42,000 mm/s2) surge 4.3 G (42,000 mm/s2) sway 1.3 G (13,000 mm/s2) heave* 8,000 deg/s^2 yaw 3,100 deg/s^2 pitch* 3,100 deg/s^2 roll* |
5.4 G (53,000 mm/s2) surge 5.4 G (53,000 mm/s2) sway 2.7 G (26,500 mm/s2) heave* 8,700 deg/s^2 yaw 7,100 deg/s^2 pitch* 7,100 deg/s^2 roll* |
|
DDX Belt Tensioner Cornering: 400 N (90 lbf) per belt Braking: 800 N (180 lbf) combined ~2.5G equivalent |
Included |
Included |
|
DDX AeroSurge |
Included |
Included |
|
Pedals |
Simucube ActivePedal brake Simucube Co-Pedal throttle |
Simucube ActivePedal brake Simucube ActivePedal throttle |
|
Manual Package (optional) |
Simucube Co-Pedal clutch BDH H2SQ sequential + H-pattern shifter Heusinkveld handbrake Simucube Tahko round wheel |
Simucube Co-Pedal clutch BDH H2SQ sequential + H-pattern shifter Heusinkveld handbrake Simucube Tahko round wheel |
|
Wheelbase |
Simucube 3 Pro |
Simucube 3 Pro |
|
Wheel Rim |
VPG Mustang GT3 |
VPG Mustang GT3 |
|
Display |
Default: 49” Super Ultrawide Optional: 3x 65” OLED TVs |
3x 77” OLED TVs |
|
Ergonomics Adjustments |
Out-of-cockpit seat + pedal slide Wheel tilt + telescope |
In-cockpit quick seat + pedal slide Wheel tilt + telescope |
|
Noise Level |
52 - 73 dB(A) |
60 - 77 dB(A) |
|
Dimensions (LxW) |
7’ x 6.5’ (2.1m x 2.0m) |
9.5’ x 7.5’ (2.9m x 2.3m) |
|
Weight (approximate) |
970lb (440kg) |
1100lb (500kg) |
|
Floor Dynamic Load (approximate, assuming 100kg rider) |
1740lb (790kg) |
2500lb (1140kg) |
|
Motion Power |
120V 15A, 100 - 350W typical 60W idle |
120V 15A, 100 - 400W typical 60W idle |
|
Total System Power (with PC, monitors, etc.) |
120V 15A, 900 - 1200W typical |
120V 15A, 900 - 1500W typical |
Additional Options available
Visual, audio and peripheral upgrades available. Please contact us for more.
