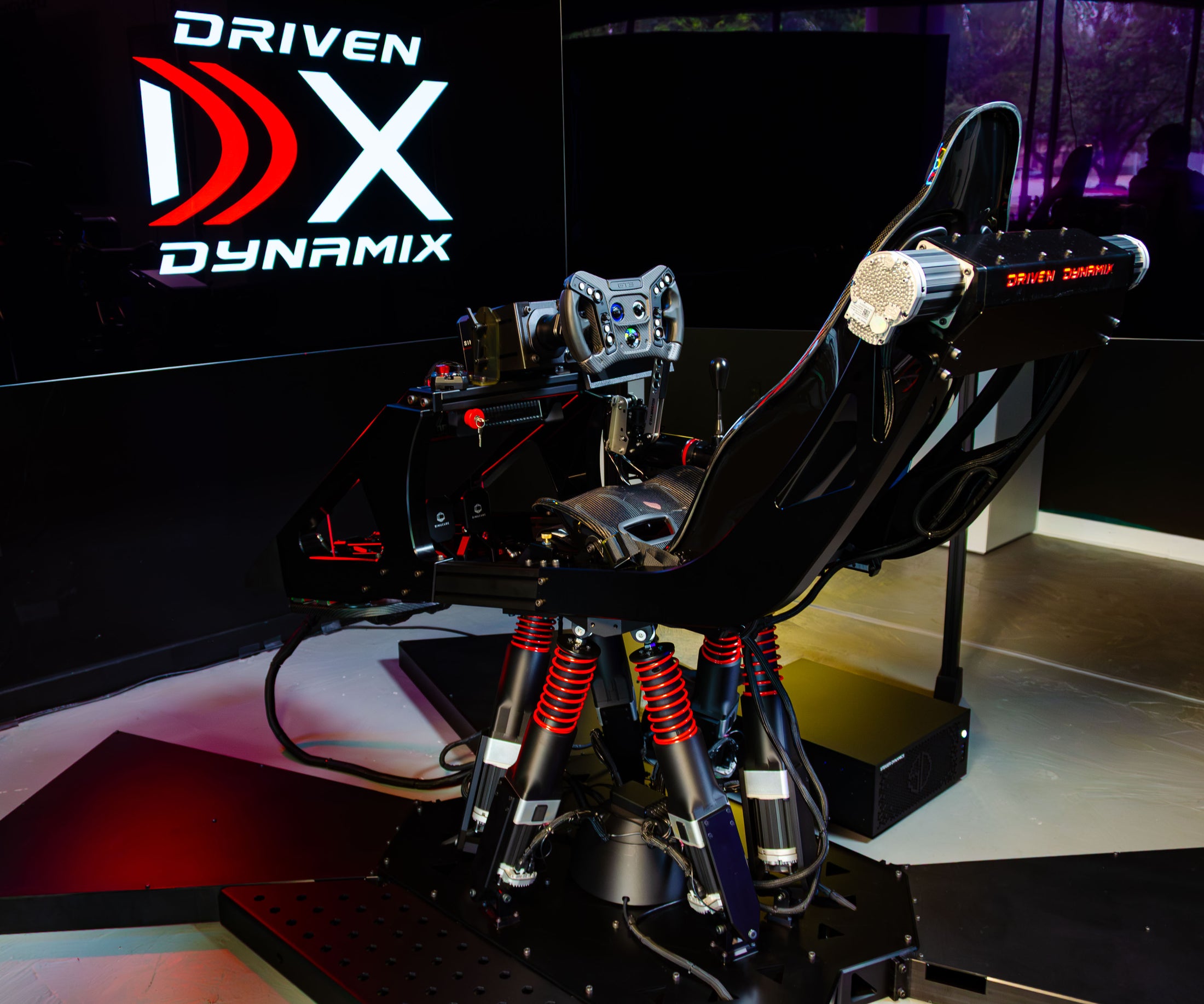

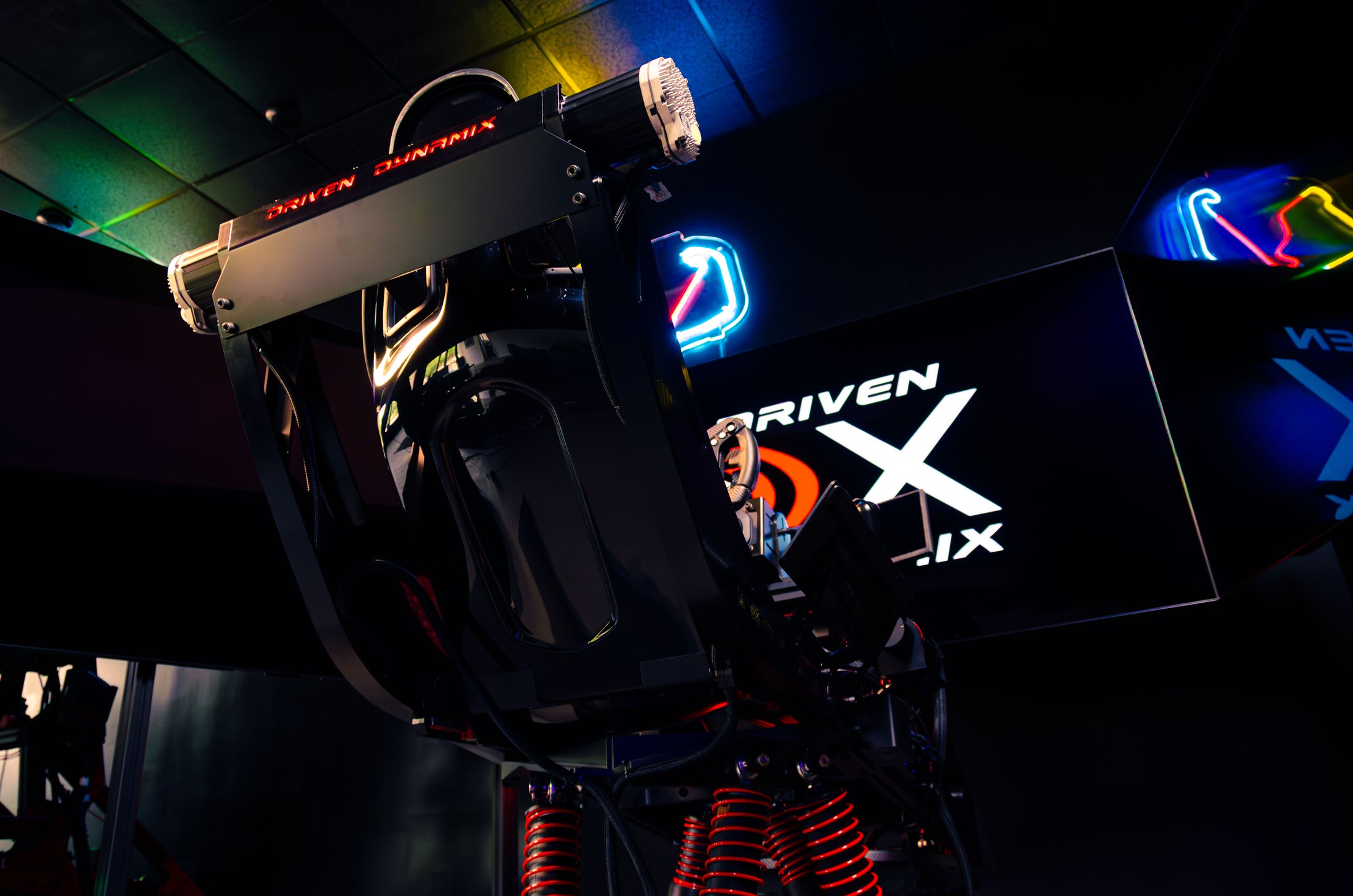

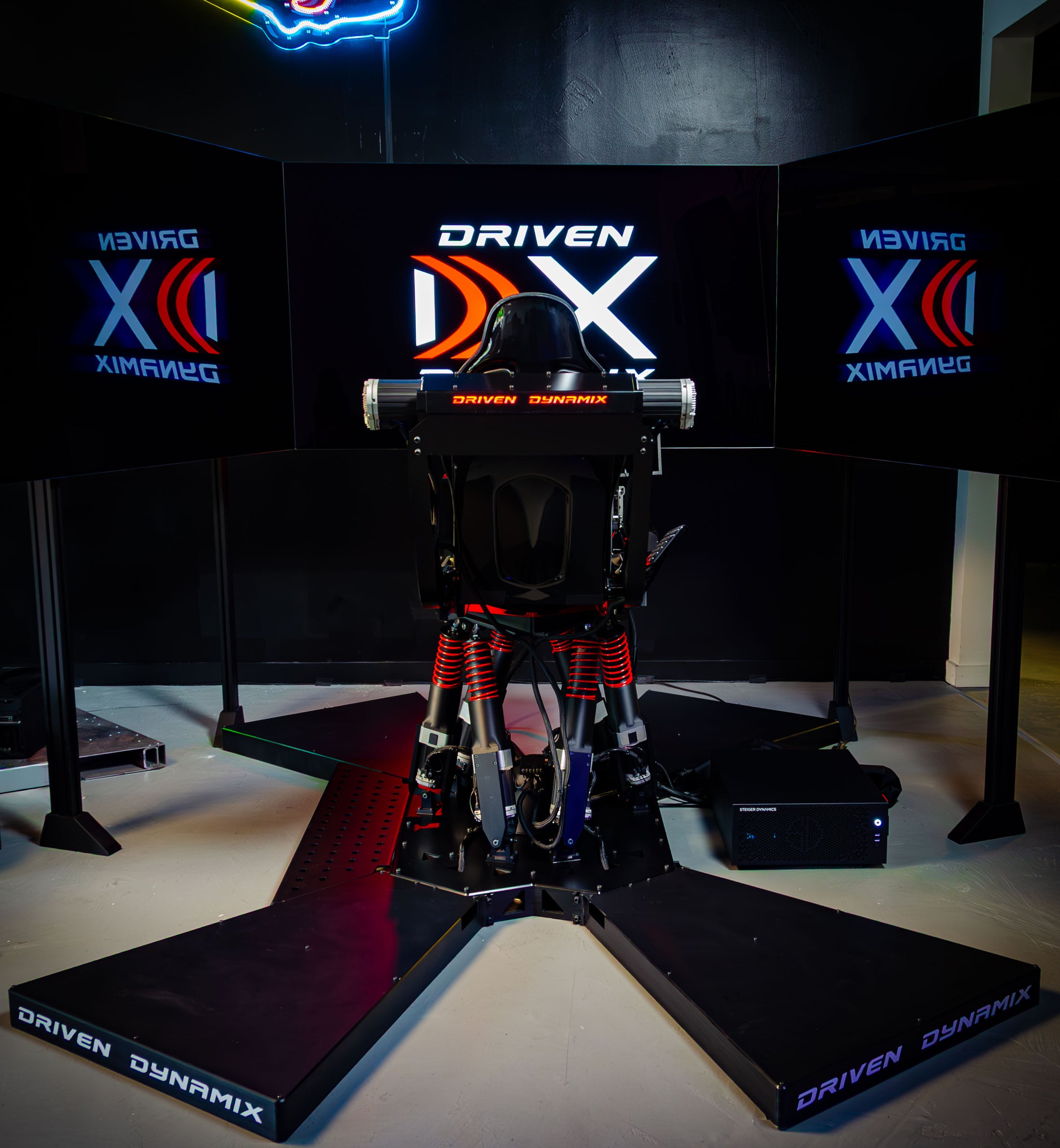

DDX Prime

The Reference for True Motion Fidelity

DDX Prime is the complete expression of the Driven DynamiX platform. Built for professional drivers, race teams, simulator centers, performance-car owners, and serious enthusiasts, it delivers exceptional motion range, speed, and physical feedback.

Its vertically integrated architecture combines hardware, electronics, firmware, actuators, and control software into one platform. The system translates simulation data into precise physical cues, including weight transfer, suspension loading, chassis rotation, braking force, and changing grip.

With approximately 2.5-3.5 milliseconds of telemetry-to-motion latency, up to 10x better than traditional systems, DDX Prime responds immediately to changes in vehicle behavior. Custom actuators generate up to 5.4 G of simulated acceleration in surge and sway, supported by a wide six-degree-of-freedom motion envelope.

Designed for Advanced Driving

DDX Prime supports professional training, race preparation, circuit familiarization, private coaching, car-control development, and year-round skill maintenance. Drivers can learn new circuits, prepare for track events, refine technique, and maintain consistency between real-world sessions.

Performance-car owners can build confidence in high-powered vehicles and access demanding driving experiences from a private installation. Collectors can explore different cars and disciplines while managing mileage on significant vehicles.

True 1:1 Motion Fidelity

DDX Prime interprets vehicle physics directly from compatible simulation software. Changes in suspension, grip, weight distribution, drivetrain layout, and setup produce corresponding changes in physical response.

Each vehicle retains its own handling character through body movement, braking response, traction, and suspension behavior. The motion updates automatically when the driver changes vehicles or configurations.

Powered by DDX PreActiv

DDX PreActiv predicts vehicle behavior and begins producing the corresponding motion cue with ultra-low latency. This keeps the platform closely aligned with the vehicle through braking, slides, grip changes, and rapid transitions.

DDX Prime operates at a 1,000 Hz control frequency, with 500 Hz haptic bandwidth and 100 Hz motion bandwidth. These specifications support detailed feedback across large vehicle movements and fine surface information.

Performance

• ~2.5-3.5 ms telemetry-to-motion latency

• 1,000 Hz control frequency

• 500 Hz haptic bandwidth

• ~100 Hz motion bandwidth

• Up to 5.4 G surge and sway acceleration

• True six-degree-of-freedom motion

• ±16-degree 1:1 orientation zone

• DDX Belt Tensioner

• DDX AeroSurge

• 60 to 77 dB(A) operating noise

• 9.5 ft by 7.5 ft footprint

• Approximately 1,100 lb system weight

Motion Envelope

High-frequency feedback communicates suspension activity, road texture, curb contact, drivetrain vibration, wheel slip, and ABS intervention.

Full-Body Force Cueing

DDX Prime includes the DDX Belt Tensioner and DDX AeroSurge. These systems add physical loading during braking, cornering, acceleration, and changes in vehicle speed.

Our DDX Belt Tensioner can apply up to 400 N, or 90 pounds-force, per belt during cornering. It can apply a combined force of up to 800 N, or 180 pounds-force, during braking.

Complete System

The Base configuration includes:

• High-end Gaming PC

• Simucube 3 Pro Wheelbase

• VPG Mustang GT3 Wheel

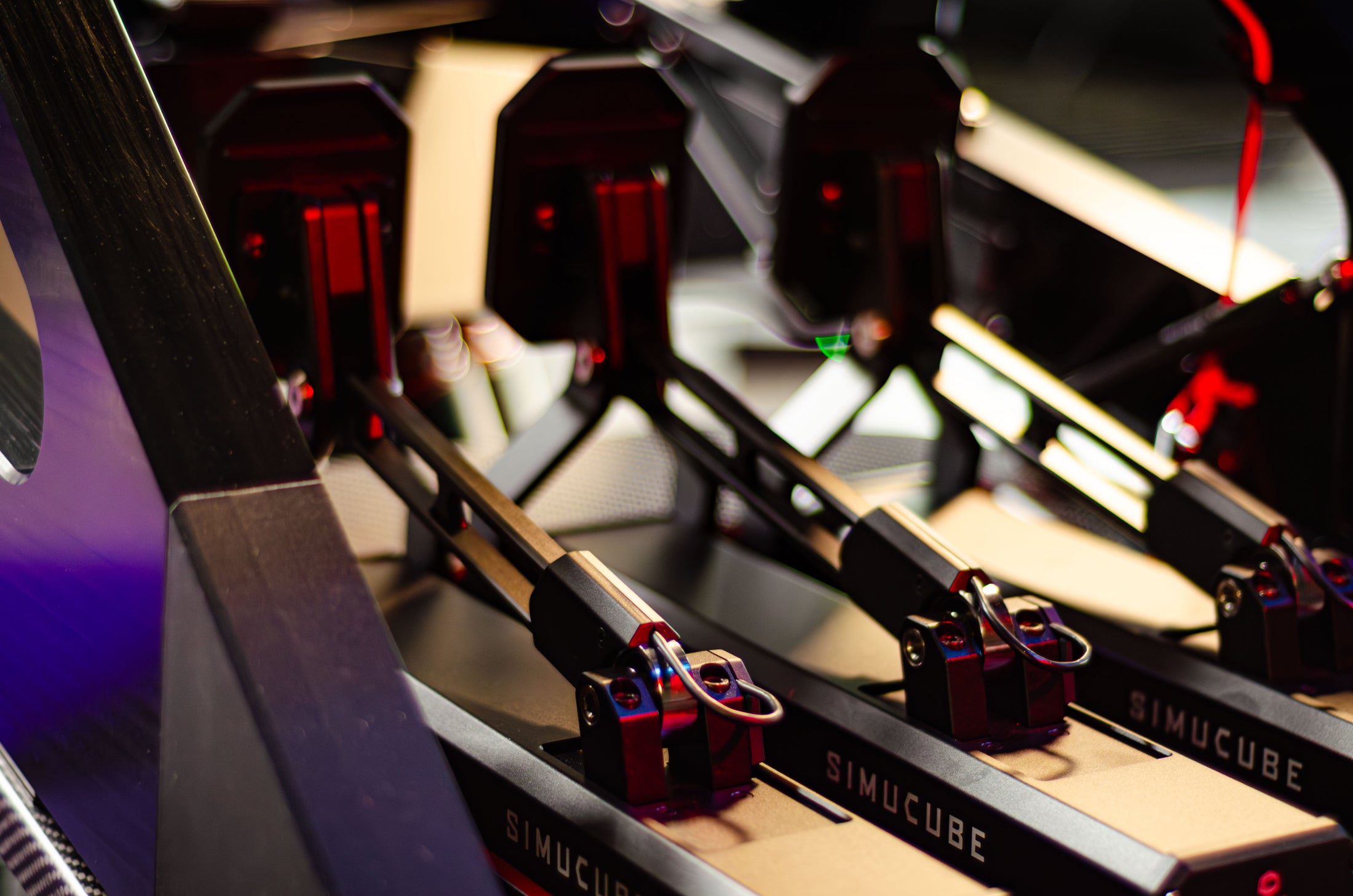

• Simucube ActivePedal brake

• Simucube ActivePedal accelerator

• Gaming headset

• Three 77-inch OLED displays with optional VR add-on

• Display stand

• 5.1 surround sound system

• iRacing

• DDX Belt Tensioner

• DDX AeroSurge

Rally Package

The Rally Package adds:

• Simucube Tahko round rally wheel

• Simucube ActivePedal clutch

• BDH H2SQ sequential and H-pattern shifter

• Heusinkveld handbrake

• Shifter bracket and hardware

• WRC or Assetto Corsa Rally software

Prime vs Precision

Why Prime?

You do not choose DDX Prime because Precision is inadequate. You choose Prime because you want the highest physical ceiling DDX offers.

Integrated Engineering

Driven DynamiX develops the hardware, electronics, firmware, motion software, actuators, and structure of DDX Prime as one system. The platform uses proprietary hardware architecture, custom electronics, CNC-machined aluminum components, metal additive manufacturing, and real-time motion control.

This integrated approach supports consistent timing, precise movement, and a direct physical connection with the simulated vehicle.
